Xenon

Product lines > Podiatry > Podiatry chairs

4 Motors

Custom colors

Colori personalizzati

Description

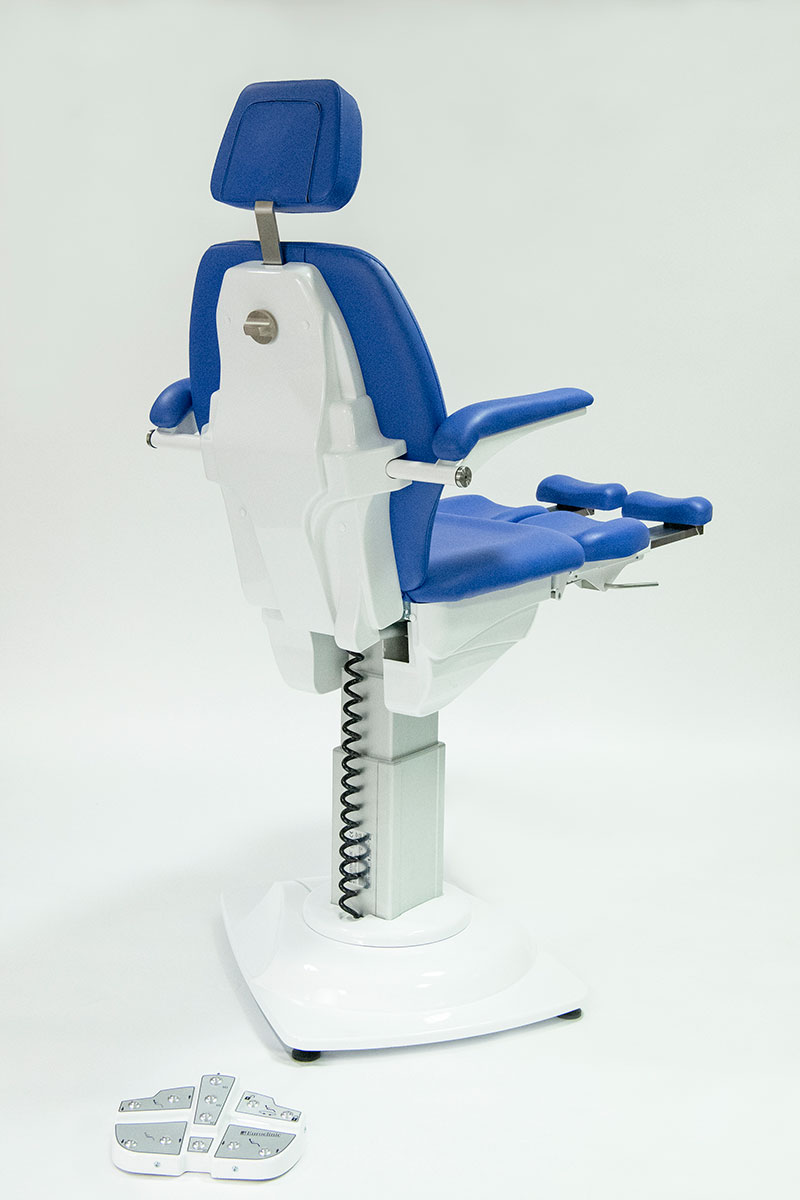

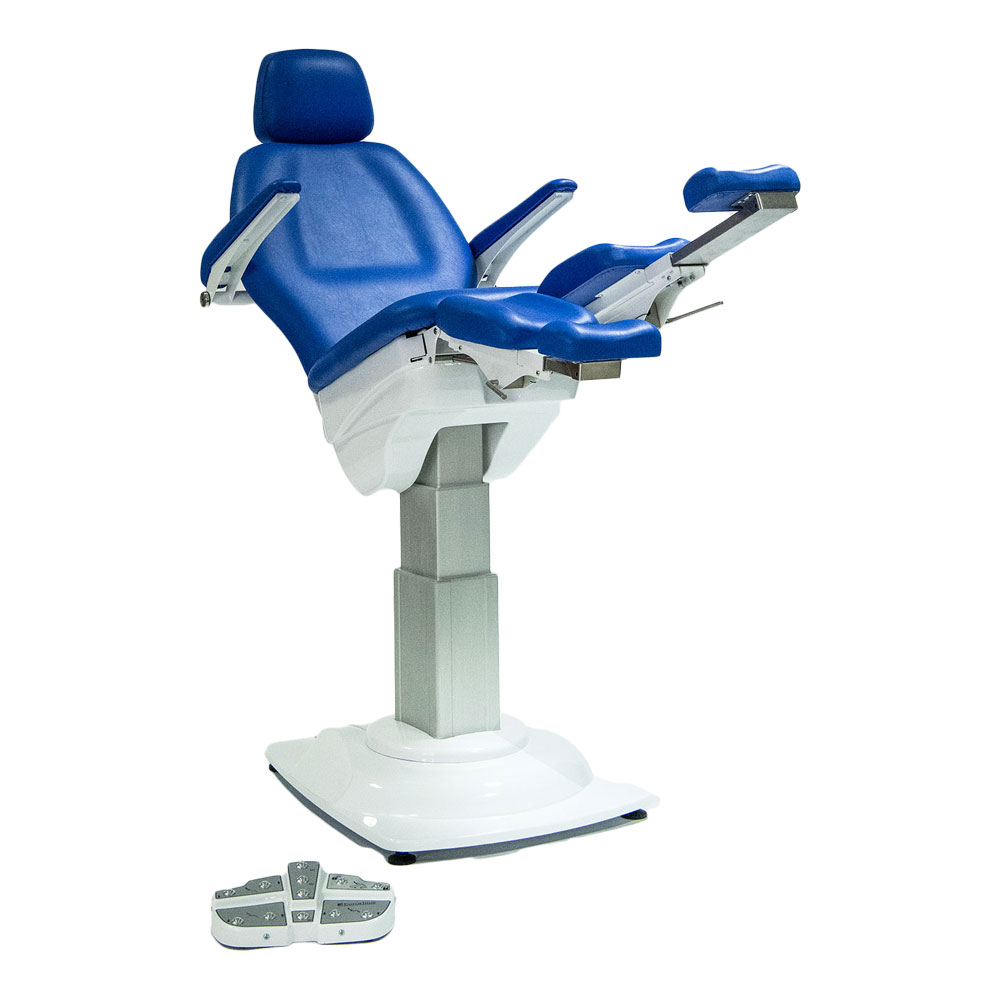

Excellent working instrument for the Podiatry professional activity. XENON is characterized by a Telescopic Column granting a vertical lifting with a wider excursion between the minimum and maximum position, making the chair the best choice for examination both on adults and on children patients, always ensuring an easy access to patients. The maximum stability is always granted thanks to the 360° rotation (manual) at the base level, lockable/unlockable through a dedicated button on the foot pedal that, activating an Electronic Signal, grants an easy and quick rotation, avoiding interruption during the normal working procedures of the Doctors. Control of all motorized chair’s movements by foot-control (wireless optional) or, if combined to an Euroclinic treatment unit, in wireless remote control from unit’s touch screen. All the desired positions can be quickly reached thanks to a multi-functional foot control with possibility to set 3 memories (at customer’s choice) along with M0 button to recall entry/exit position. Xenon can reach all the desired position of the Doctor, up to the bed position. The double splitted leg-rests are extendable and orientable, allowing an ergonomically correct approach to the foot from a frontal and lateral point of view.

Details

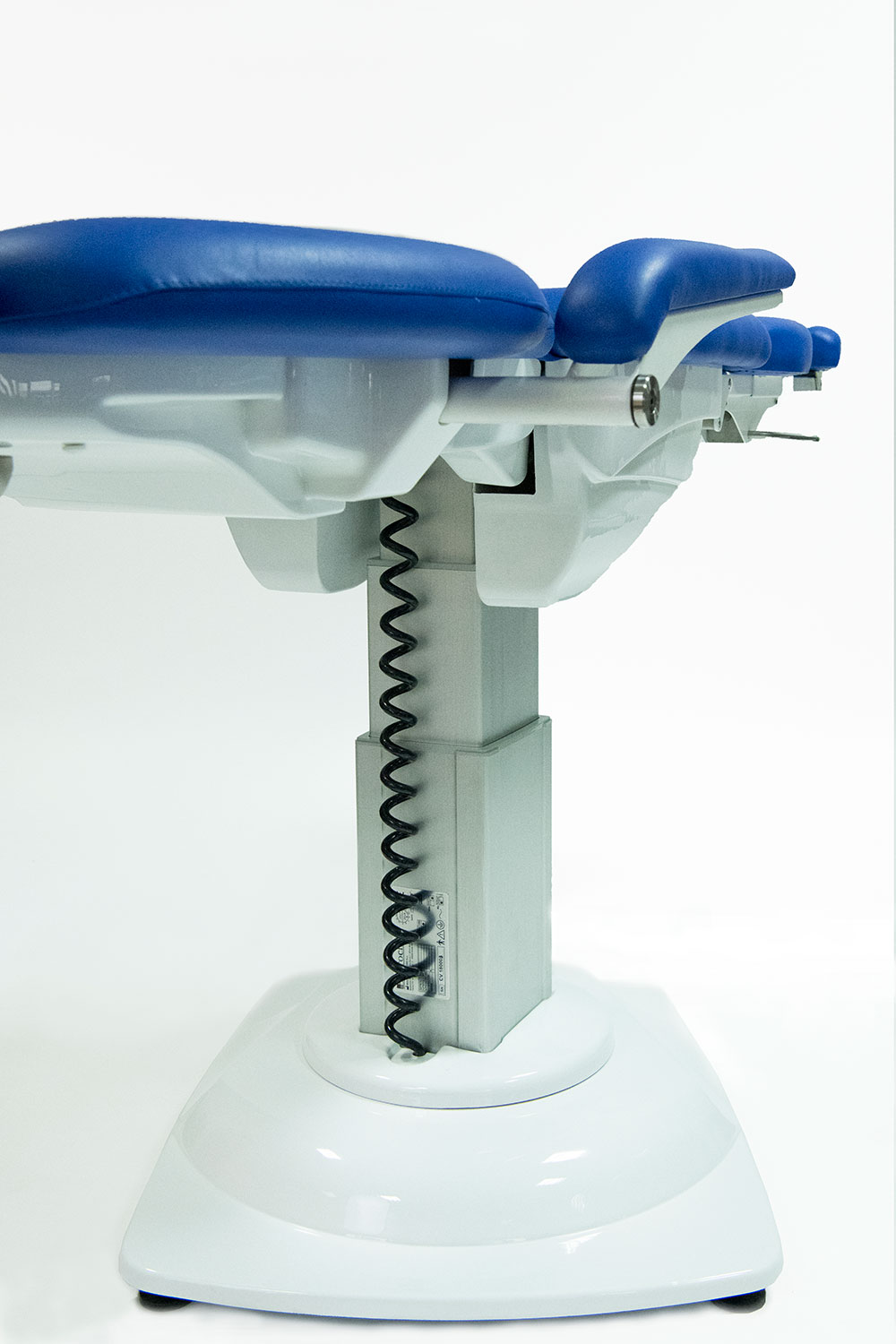

Column lifting system
Column lifting system allowing maximum stability and a wider excursion between minimum and maximum height.
Adjustable backrest
Backrest electrically movable, up to bed position.

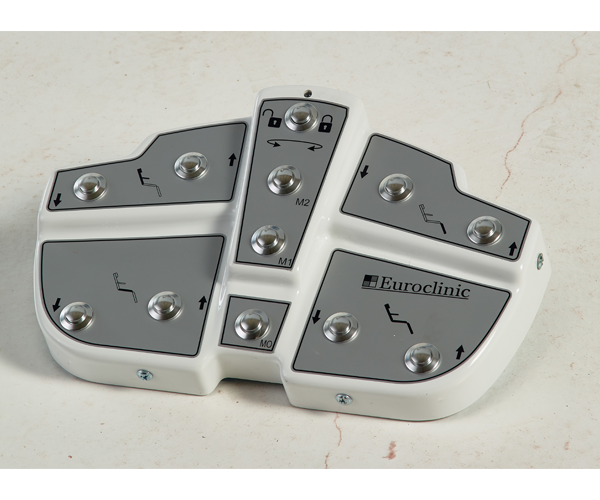

Multifunction foot control
Multifunction foot control (WIRELESS version optional) for the control of each chair’s movements, provided with 3 memories: 2 working positions at choice + 1 to recall the resting position of the chair (“zero” position) as well as one button for the electrical locking / unlocking of the chair’s rotation. When combined to treatment unit possibility to control the chair by unit’s Touch Screen

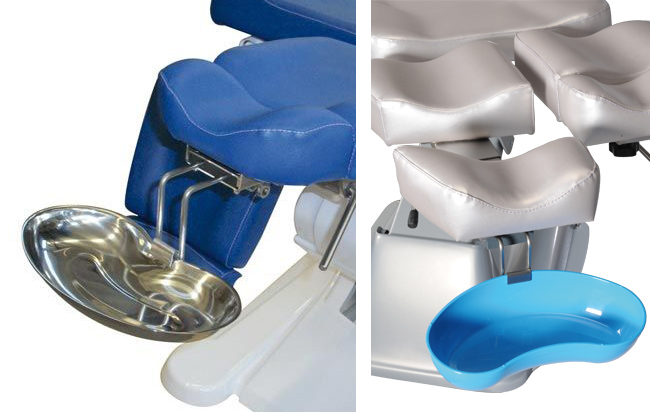

Kidney dish application
Kidney dish application, available in stainless steel or plastic

Technical details

NAME VALUE
Feeding tension 100-240 VAC - 50/60 Hz
Low tension motor 24 Vdc
Lifting motor push 4000 N
Backrest motor push 6000 N
Seat motor push 6000 N
Rotation Break motor 250 N
Lifting Capacity 300 Kg
Absorbed power 200 VA
Chair weight 120 Kg
Maximum legrest height 1330 mm
Download data sheet
