Podopeg/E - Podopeg

Product lines > Podiatry > Podiatry chairs

1/3 Motors

2 years warranty

Custom colors


Description

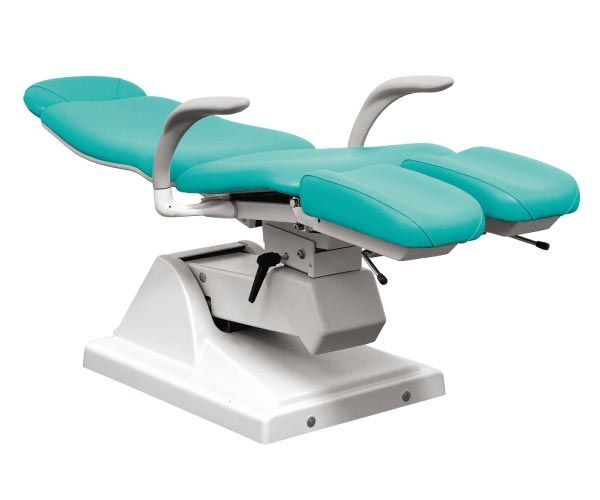

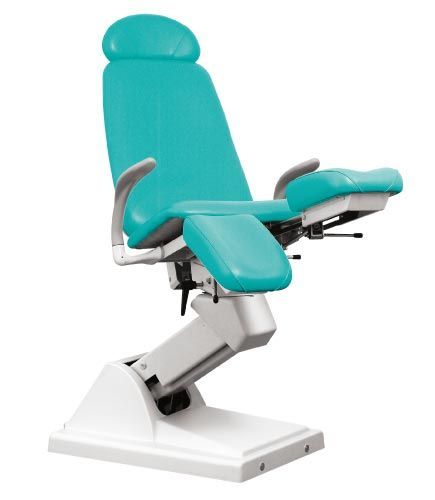

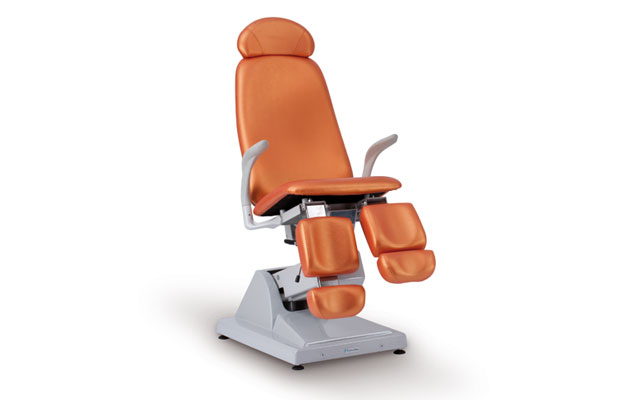

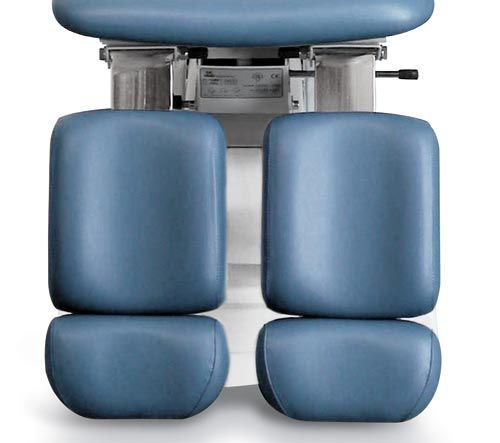

Podopeg is a podiatry and chiropody patient chair designed in cooperation with 5 professional consultants. It is operated by very silent low-tension electric actuators that enable the rising and descent from 46 cm off the floor (“0” position) up to a maximum of 88 cm. The Trendelenburg position is synchronized with the rising movement, at maximum height the leg-rests are 110 cm off the floor. The back-rest movement can go as low as 180° thanks to a gas pump. The leg-rest can be moved separately and it can be manually extended and positioned by means of a locking device. Podopeg presents three different variants, which are different only in the mechanical movements, but equal in style: PODOPEG: chair with one motor that electrically controls rising and descent PODOPEG/E: chair with legrests, seat and descent electrically moved and with backrest manually moved.

Optional

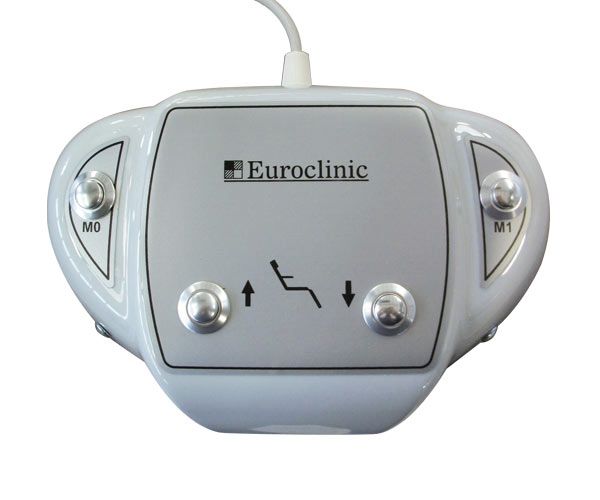

Foot control provided with 2 memories
One is fixed “M0” for entrance/exit of the patient and the other one is at choice of the operator.
Application of basin
Available in plastic or in stainless steel
Application of stability kit to the base
Application of stability brackets to the floor. Maximum stability is granted

Technical details

NAME VALUE
Feeding tension 100-240 VAC 50/60 Hz
Low tension motor 24 Vdc
Lifting motor push 8000 N
Backrest push 800 N
Lifting Capacity 180 Kg
Maximum power 90 VA
Fuses protection 1,6 A
Control box protection degree IP54
Chair weight 70 Kg

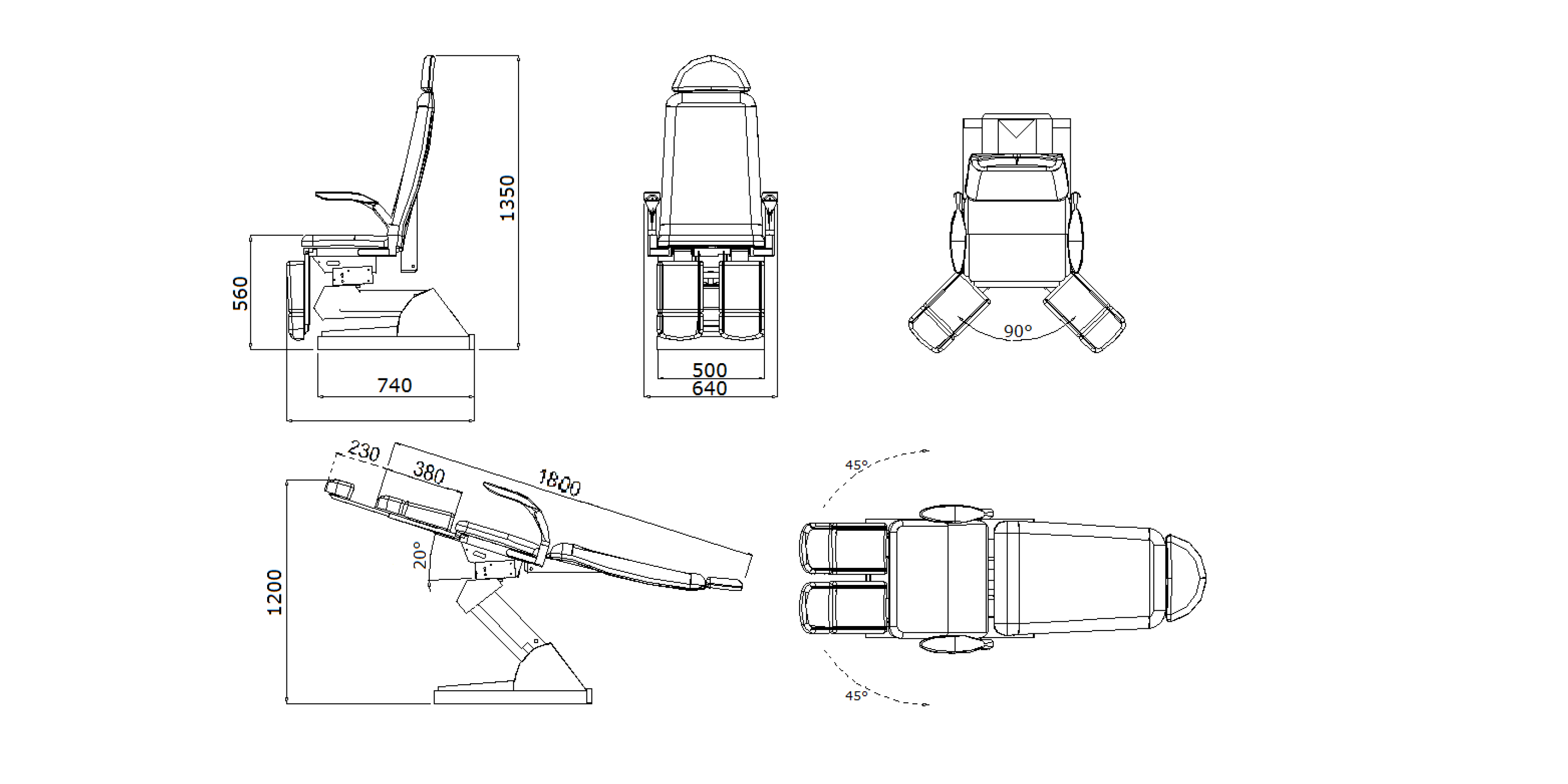

Base length 740 mm
Maximum legrest height 1200 mm
Download data sheet
