Concept

Product lines > Podiatry > Podiatry chairs

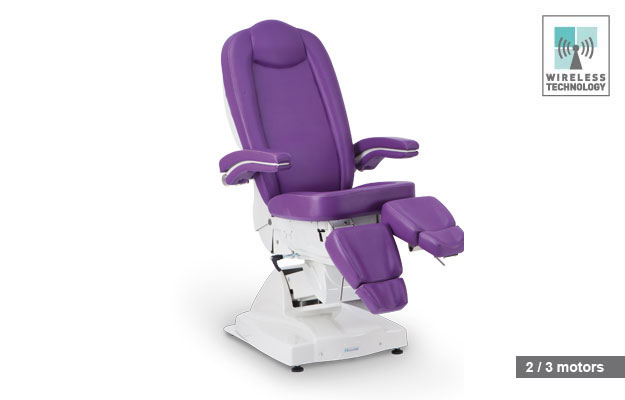

2/3 Motors

2 years warranty

Custom colors


Description

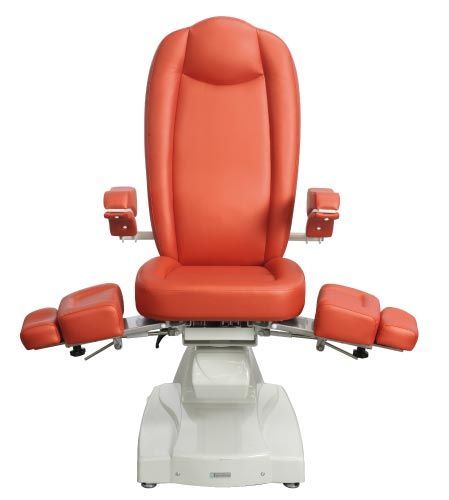

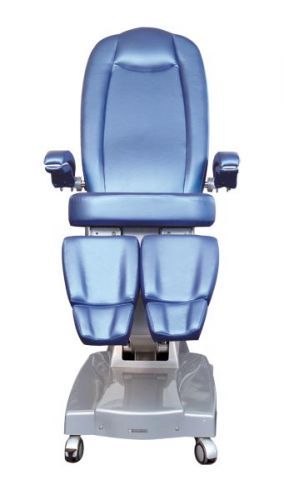

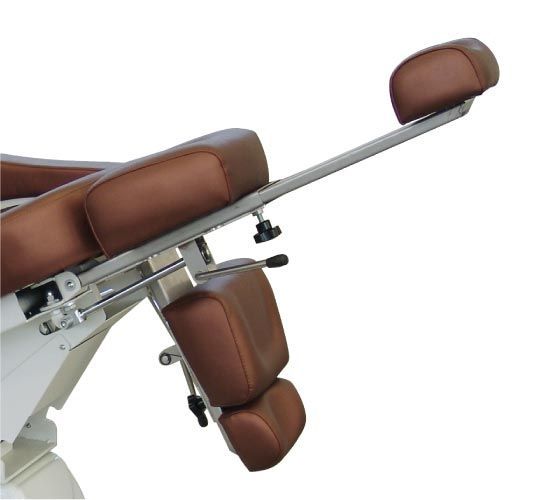

Mya is a professional podiatry chair with soft-looking figure that offers to the patient’s sitting maximum comfort and relaxing effect. Elegant design combined to advanced technology are main features of Mya chair. The backrest higher than standard sizes is provided at its top and base with two soft ovals in relief acting as headrest and lumbar cushion. Mya is provided with 3 motors: one for chair lifting, the second one for the seat inclination, and the third one controls the backrest movement. Combined movement of backrest and seat (up to Trendelenburg position). The chair’s able to reach a 360° rotation and is characterized by a solid metal structure painted with epossidic powders and the carter coverings are simply the best expression of modern design and engenneering of the podology field. Please, note the curved construction of mya’s arm-rests wrapped up with two “pillows” (upper and lower) having independent lifting movement Mya is unique also for its splitted leg-rests. Besides the esthetical style of their trapezoidal and anatomical upholstery the leg-rests are innovative for their stain-less steel structure and their self-braking system that allows the foot-rest movement smoothly back and forth without blocking the mechanic at each movement. The foot-control (wireless optional) allows to memorize 2 working positions and, moreover, to recall “zero” position (patient exit position).

Optional

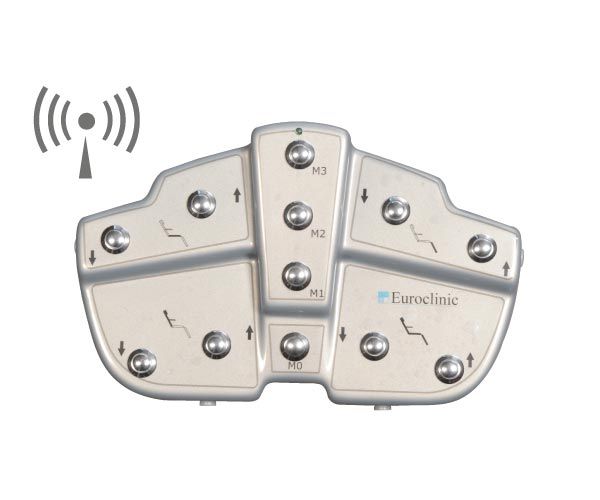

Wireless foot control
Multifunction wireless foot control with possibility to select 3 working memories + one fixed called "zero" for entrance and exit of the patient. Possibility to control the electric movement of the chair also from the podiatry unit's touch screen, if provided.

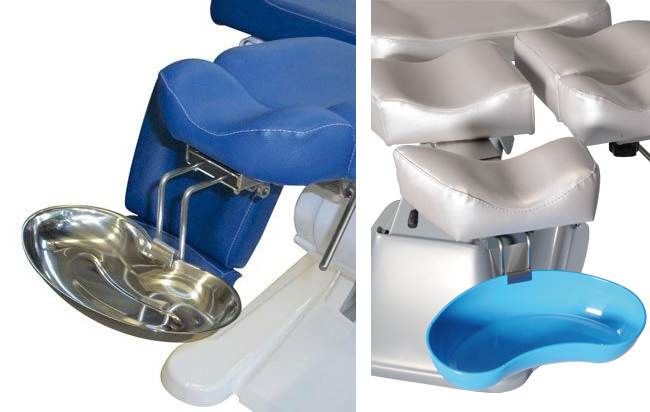

Application of kidney dish
Available in stainless steel or in plasticApplicazione bacinella reniforme.

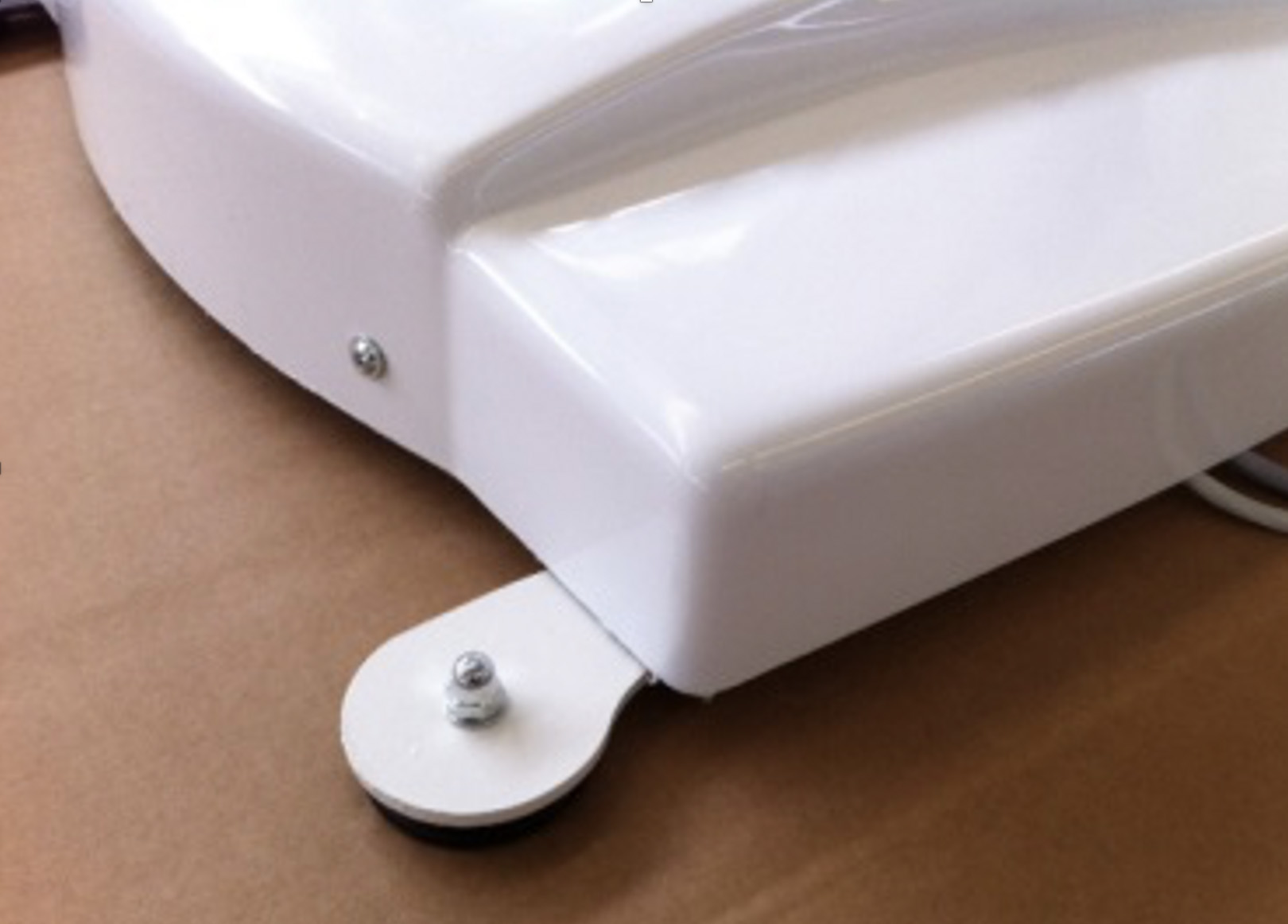

Application of stability kit to the base
Application of stability brackets to the floor. Maximum stability is granted

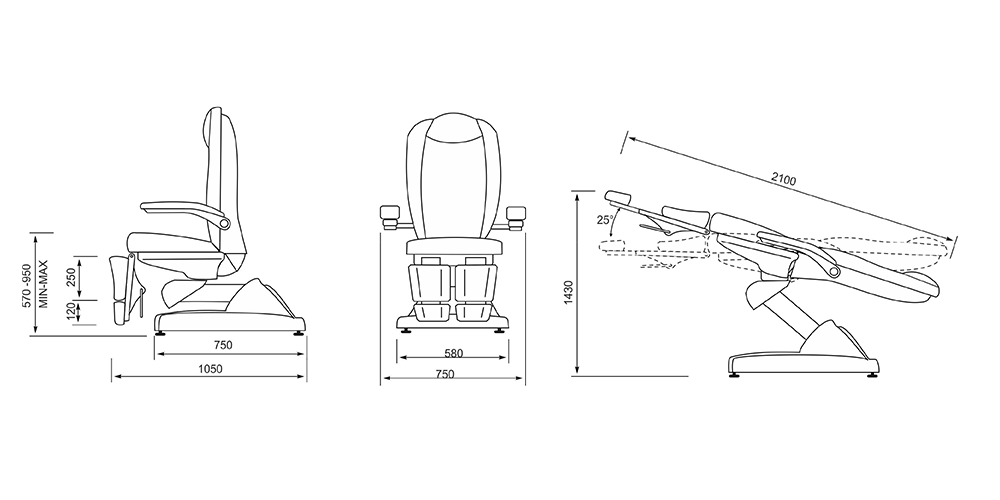

Technical details

NAME VALUE
Feeding tension 230 V-50 Hz
Low tension motor 24 Vdc
Lifting motor push 6000 N
VERSION 3 MOTORS:Backrest motor push 6000 N
VERSION 2 MOTORS:Gas-spring back-rest 800 N
Seat motor push 6000 N
Lifting Capacity 200 Kg
Absorbed power 120 VA
Chair weight 120 Kg
Base lenght 750 mm
Maximum legrest height 1430 mm
Download data sheet
