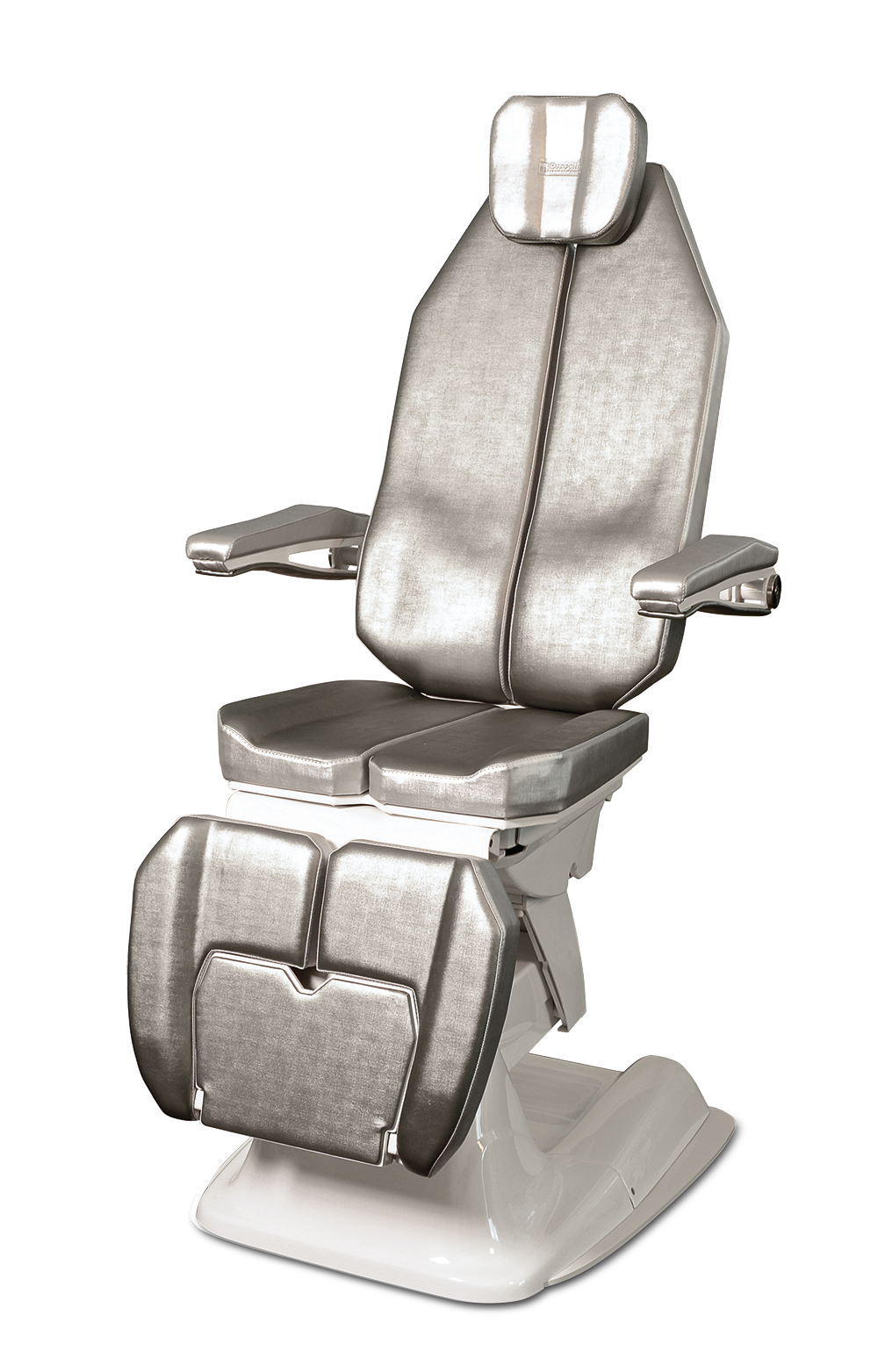

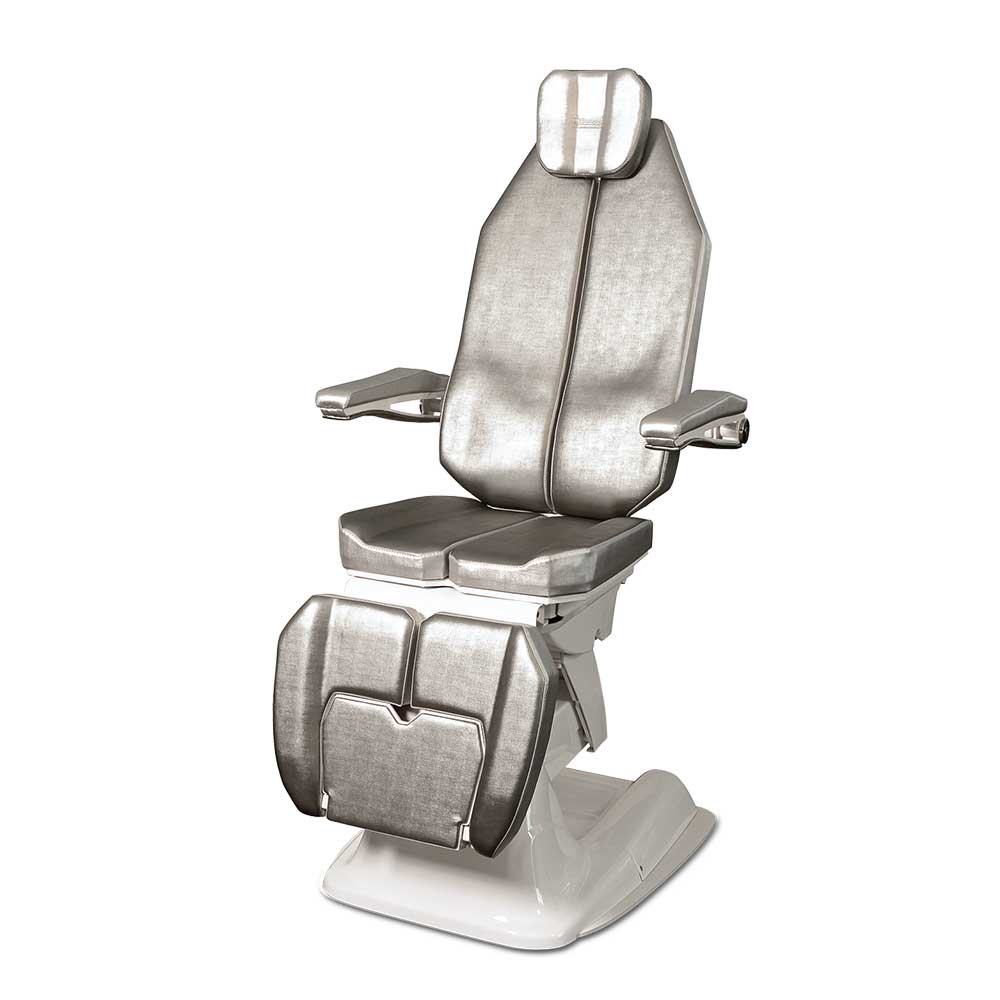

Lynea EVO
Descrizione
The chair is equipped with 4 engines allowing the independent movement of up/down, backrest, seat and leg-rest; a solid metal painted structure and zinc-coated, available in silver color or white (at choice).
The padded sections (backrest, seat and legrest) are easily removable for a better cleaning and disinfection operation thanks to a magnet system.
Details
Removable, high density and undeformable foam
The upholstered parts of the chair are composed of high density and un-deformable foam pelted with bi-elastic, tear-resistant, antimicrobial skai, very easy to clean. More than 50 nuances available.
Padded and lift able armrests to facilitate the entry from the sides also to people with disability.
Padded lumbar pillow for maximum comfort when the patient is lying.
Multifunction Foot Control
Multifunction foot control (WIRELESS version optional) for the control of each chair’s movements, provided with 4 memories: 2 working positions at choice + Synchro for combined backrest/legrest and 1 to recall the resting position of the chair (“zero” position). If combined to treatment units possibility to control the chair by unit Touch Screen
Technical details
| NOME | VALORE |
|---|---|
| Power supply tension | 100-240 VAC 50/60 Hz |
| Low tension motor | 24 Vdc |
| Lifting motor push | 8000 N |
| Backrest motor push | 8000 N |
| Seat motor push | 8000 N |
| Unique legrest motor push | 2500 N |
| Lifting Capacity | 200 Kg |
| Absorbed power | 120 VA |
| Chair weight | 120 Kg |
| Base lenght | 800 mm |
| Maximum legrest height | 1330 mm |
